Granite Device's Servo Cards

Argon

Argon Drive



Ioni

Ioni Drives



VSD (Discontinued)

Servo Card



Maple Leaf DashX is the authorized Canadian distributor of Granite Devices products - we ship worldwide!



Ioni

Ioni

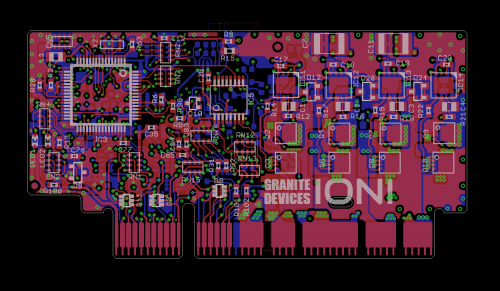

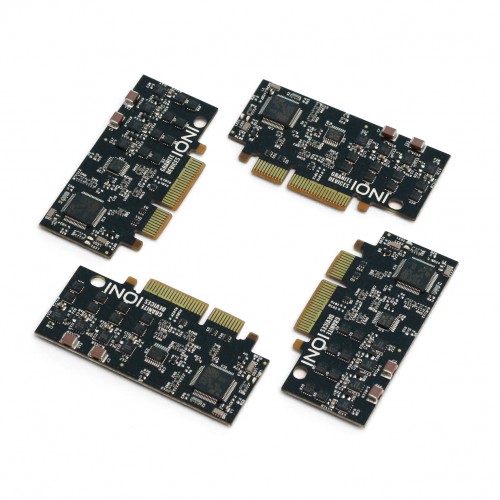

Preliminary Specifications.

  • 5-55VDC (70VDC Effective)
  • 15A (Adaptive current limiting)
  • Run directly via Mach4 software
  • Same or lower price than the VSD drives.
  • 100VDC Model coming later in the year



VSD - Discontinued

  • The VSD drives have been replaced by the brand new IONI drives.
  • We will post details of the new drives as soon as they are avaliable.
  • Can be run in Dual DC mode allowing for 1 card to run 2 seperate servo motors!
  • Easy setup via GDtool software GDtool
  • SimpleMotion control library for PC, C/C++/C#, LabVIEW etc
  • Various low level command inputs (step/dir, PWM, quadrature, ±10V)
  • Easy connection to fieldbuses like EtherCAT or CANopen (more info)
  • Most AC/BLDC/DC and linear servo motors supported
  • Advanced sinusoidal field oriented control (FOC)
  • True current control protects equipment and boosts responsiveness
  • 12-160 VDC supply voltage
  • 10A cont. 20A peak output for AC/BLDC motors
  • 14A cont. 40A peak output for brush DC motors
  • Reliability guaranteed by wide safety margins and quality components

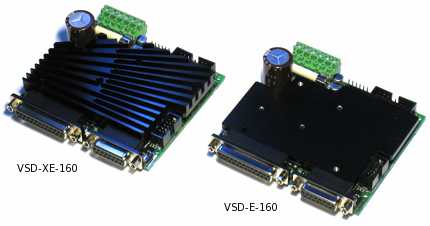

    VSD-E-160

  • Electrical & mechanical braking of motor in faults & disable
  • Fully automatic internal homing controller
  • Optimized for CNC and machine automation
  • Robust 200V 60A MOSFET power stage
  • Panel installation, 19" rack compatible. See example.
  • Regenerative brake resistor output
  • Hard to kill: short circuit, over current, over temperature, I²t, over voltage and under voltage protections
  • Advanced positioning with acceleration limit and smoothing
  • Wide selection of control I/O's, see Connectivity.
  • The only difference between the VSD-XE and the VSD-E is the heatsink, and warranty. They are the same hardware. The lower continuous power rating is only due to the lack of heatsink.

Note: specifications are subject to change



Pricing - Servo Drive Cards

Picture Part # Warranty Specifications
Price (USD)
Argon Drive GD-ARGON If your Argon break within 24 months of use, we will repair or replace them free of charge (details).

Argon is the flag ship servo drive by Granite Devices.

Wide range of unique features consists:

  • Supports 97% of all industrial servo motors.
  • AC, BLDC, Linear and DC servo motors from 50 W to 1500 W
  • High dynamic range torque control
  • Streamlined setup process
    Dual CPU architecture with dedicated open source ARM CPU for user functionality
  • No external power supply required
  • Runs directly from AC Mains (or DC)
  • And tons more, see Argon Wiki page



Don't forget to get a GD-SIMPMOT adapter to program the drive with.



$499

*Prices do not included 5% GST or shipping



Accessories

Picture Part # Details Price (USD)
Simple Motion USB GD-SIMPMOT

USB to SimpleMotion V2 adapter.

One of these is required to configure Argon servo drive.

For full specifications, click here.

$20



CAT-5e Shielded

DX-CAT5ESH

Shielded Cat-5e Network Cable

with metal plugs and foil shielding to prevent electrical interference.

Used to connect the SimpleMotion adapter to an Argon drive for programming.





Length - feet (m)

Argon Resolver GD-RESOLVE

Argon resolver adapter

Argon resolver adapter is a small sized device that adds resolver feedback device support to the Argon servo drive.

$13



USB Cable GD-USB232

USB programing adapter for VSD cards

Required for configuring VSD drives via GDtool.

USB to RS-232

Only one cable is needed for all the cards.

$24



Bracket GD-VSDDIN

DIN Moutning Bracket

Allows mounting of 2 VSD cards on DIN rail.

$21



Granite Kit GD-VSDKIT

VSD-E/XE installation kit

  • DB15
  • DB25
  • DB Housings
  • DB25 to Motor PCB adaptor
  • 100cm Optical Fiber for LEDs
  • 50cm Ribbon Cable (16C)
  • 50cm Ribbon Cable (10C)
  • 16 Pin Ribbon Header x2
  • 10 Pin Ribbon Header x2
  • Braking Resistor
  • Protection Diode

$23



Power Supply DX-SMPS600

Power Supply - Stepper/Servo

  • Special regenerative design for use with Stepper and Servo systems
  • Works great with all Gecko drives! (@63V)
  • Works great with all Granite VSD drives (@126V)
  • High efficiency
  • Switch-mode power supply
  • Short-circuit protected
  • Selectable input voltage range
  • 115/230VAC Input
  • Extremely small form factor
  • Low EMI
  • 600 Watt
  • 2x63 or 1x126 VDC - Dual Output
  • Multiple units can be placed in parallel for high current systems
  • Data sheet

$259



*Prices do not included 5% GST or shipping



Shipping - Worldwide

Country

Method Tracking #

Estimated Delivery

(Business Days)

Cost

Canada

Xpress Post Yes 2 $32
USA Parcel Air No 6-10 $32
International Parcel Air No 6-10 $32
- UPS Yes RUSH Quote

*Shipping may be adjusted for larger orders if the automatic shipping calculation is incorrect.
*Postal insurance must be included. We are not responsible for lost/damaged shipments.

If you prefer not to use our automatic shopping cart, you can place your order via email.
